Stepped Drilling for Side-Hole Machines

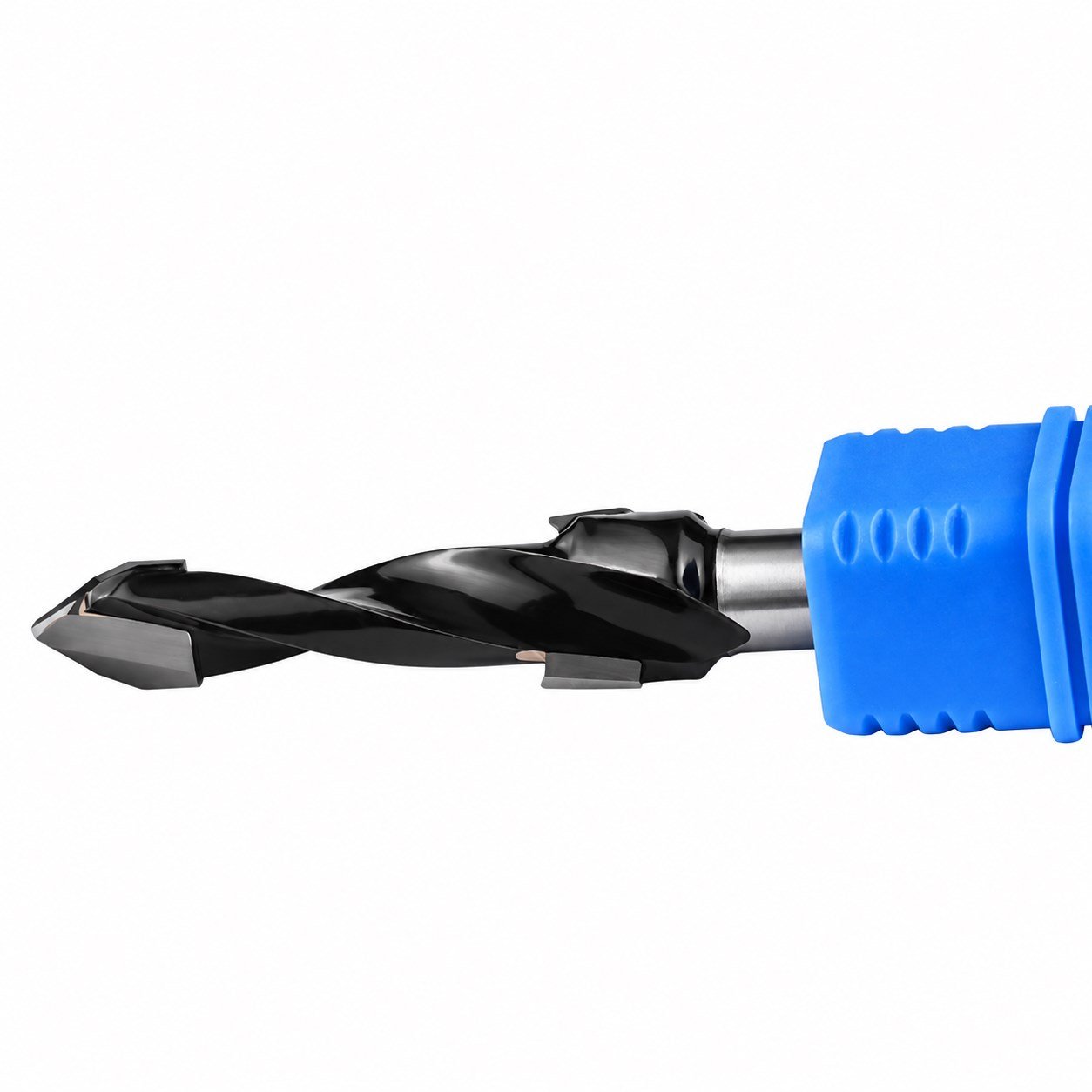

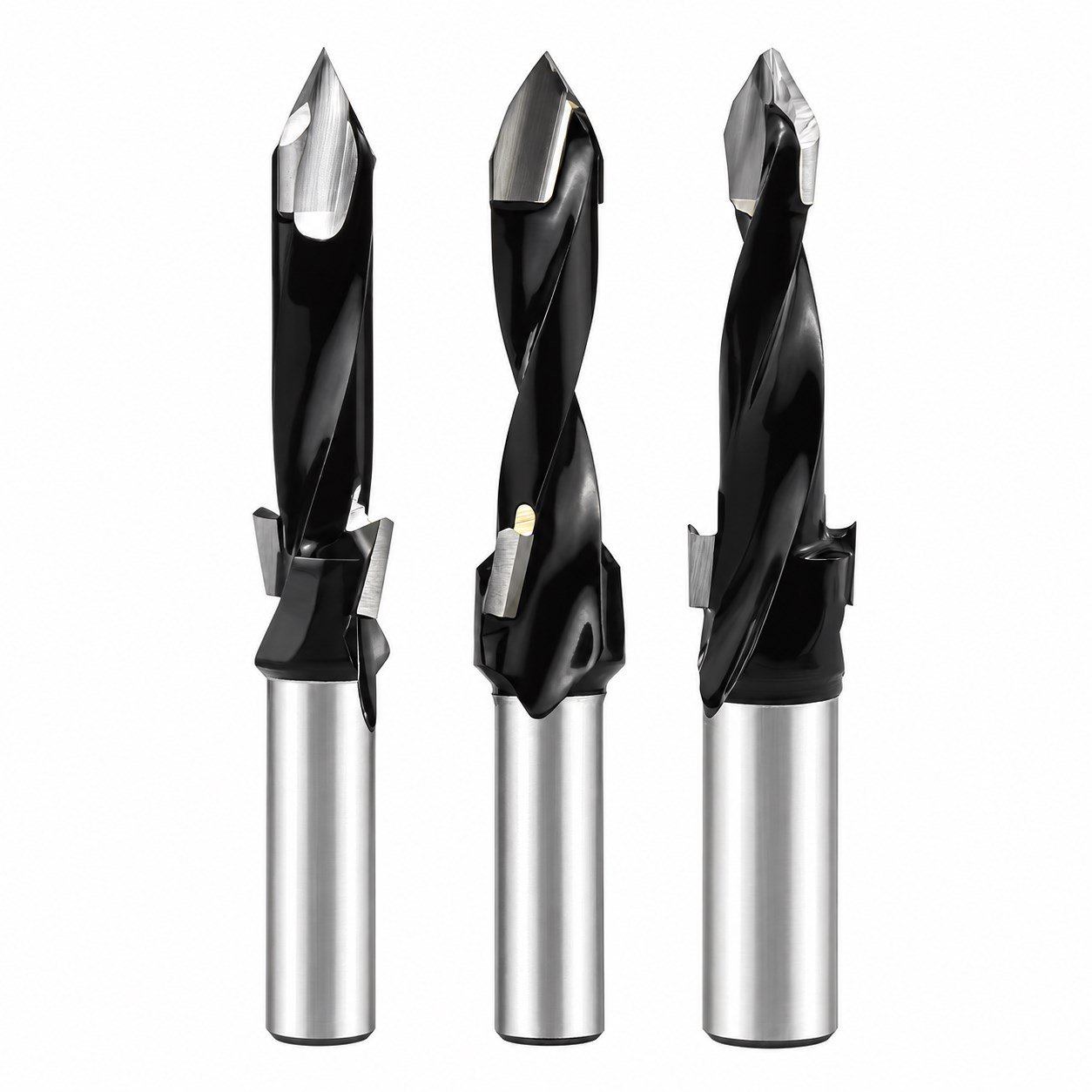

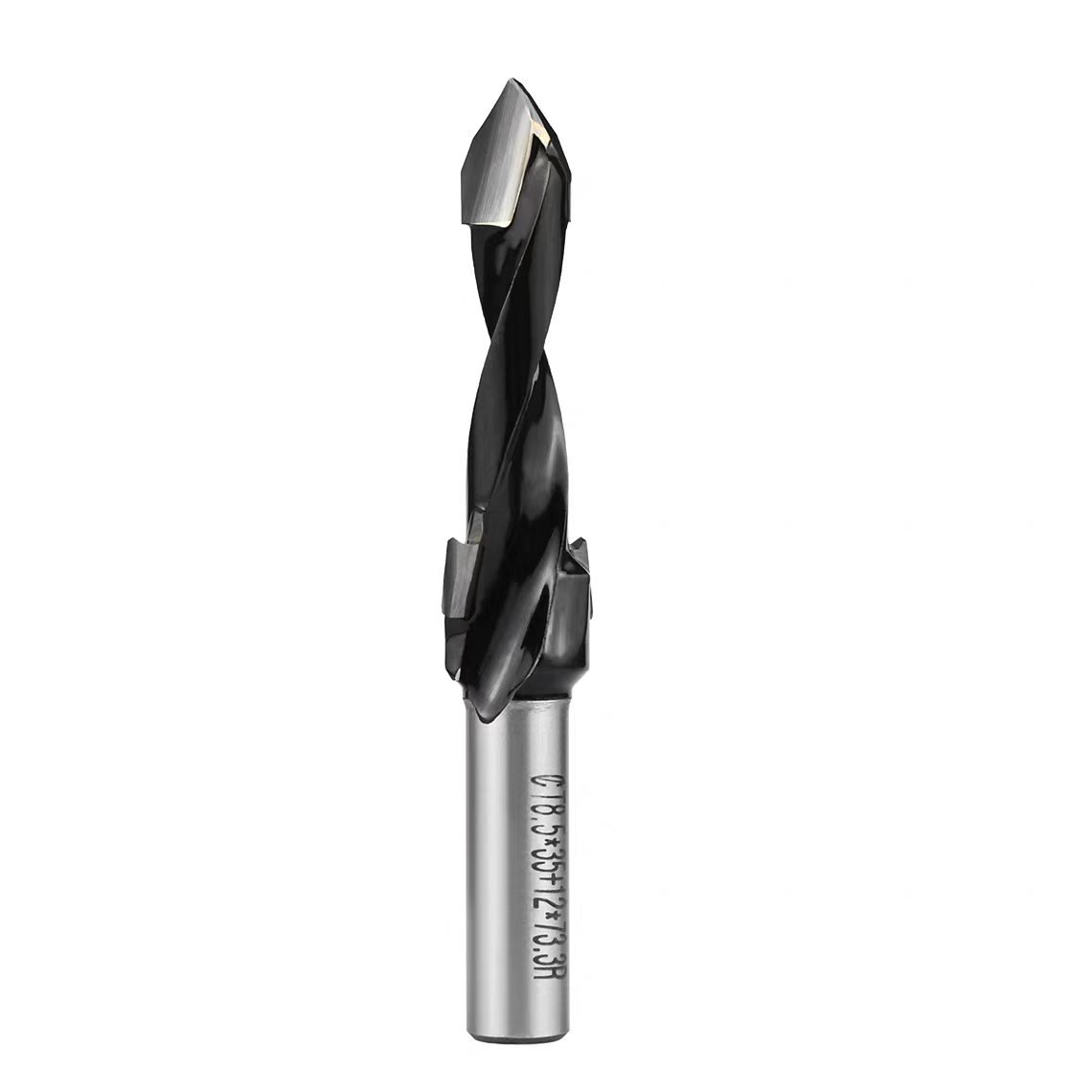

This drill is intended for magnetic-levitation side-hole drilling machines. It has tungsten-carbide cutting edges and a high-speed steel shank, with a pilot section and larger stepped diameter.
Materials and Compatibility
Suitable materials listed for this drill are MDF, density board and particleboard. It is not suitable for plywood/multilayer board or solid pine wood.
Listed Right-Hand Sizes
| Pilot diameter (mm) | Pilot length (mm) | Step diameter (mm) | Overall length (mm) | Shank diameter (mm) | Rotation |
|---|---|---|---|---|---|
| 8 | 35 | 12 | 73.3 | 8 | R |
| 8.5 | 35 | 12 | 73.3 | 8 | R |
| 8.5 | 35 | 12 | 73.3 | 10 | R |
Request a Quote
Send your material, machine model, required dimensions, rotation and quantity to info@lihotools.com. A profile drawing or current-tool photograph helps us confirm the configuration.
Confirm the specification for your application
Choose the exact pilot and shank combination from the table and confirm the side-hole machine model. This range is not specified for plywood, multilayer board or solid pine.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
Explore Carbide Tools or send your application details to Liho Tools.
