Two-flute compression routing for panel work
This solid carbide compression router bit combines opposing spiral cutting sections for routing panel materials. The two-flute design is offered in the diameter, cutting-length and shank combinations listed below. Select the tool against the board construction and thickness, cut depth and machine setup.
Materials and compatible equipment
Listed applications include veneered board, plywood, MDF, particleboard and selected plastic boards, including PVC. It is intended for compatible CNC routers, engraving machines and precision engraving equipment. Confirm the exact plastic or board grade before selecting the cutter.
Available specifications
All dimensions are in millimetres. Cutting diameter d, cutting length h, shank diameter D and overall length L are listed as complete configurations. Select a table row; dimensions from different rows should not be combined.
| Cutting diameter d (mm) | Cutting length h (mm) | Shank diameter D (mm) | Overall length L (mm) |
|---|---|---|---|
| 1 | 4 | 3.175 | 38 |
| 1.5 | 6 | 3.175 | 38 |
| 2 | 8 | 3.175 | 38 |
| 2 | 12 | 3.175 | 38 |
| 2.5 | 12 | 3.175 | 38 |
| 3.175 | 12 | 3.175 | 38 |
| 3.175 | 17 | 3.175 | 38 |
| 3.175 | 22 | 3.175 | 45 |
| 3.175 | 25 | 3.175 | 50 |
| 3.175 | 28 | 3.175 | 50 |
| 3.175 | 32 | 3.175 | 55 |
| 4 | 12 | 4 | 40 |
| 4 | 15 | 4 | 40 |
| 4 | 17 | 4 | 40 |
| 4 | 22 | 4 | 45 |
| 4 | 25 | 4 | 50 |
| 4 | 28 | 4 | 55 |
| 4 | 32 | 4 | 55 |
| 5 | 17 | 5 | 45 |
| 5 | 22 | 5 | 45 |
| 5 | 25 | 5 | 50 |
| 5 | 28 | 5 | 55 |
| 5 | 32 | 5 | 60 |
| 5 | 22 | 6 | 50 |
| 6 | 17 | 6 | 45 |
| 6 | 22 | 6 | 45 |
| 6 | 25 | 6 | 50 |
| 6 | 28 | 6 | 55 |
| 6 | 32 | 6 | 60 |
| 6 | 42 | 6 | 70 |
| 6 | 52 | 6 | 80 |
| 6 | 62 | 6 | 100 |
| 8 | 22 | 8 | 60 |
| 8 | 25 | 8 | 60 |
| 8 | 32 | 8 | 70 |
| 8 | 42 | 8 | 70 |
| 8 | 50 | 8 | 80 |
| 8 | 62 | 8 | 100 |
| 8 | 80 | 8 | 120 |
| 10 | 32 | 10 | 60 |
| 10 | 42 | 10 | 70 |
| 10 | 52 | 10 | 80 |
| 10 | 62 | 10 | 100 |
| 10 | 80 | 10 | 120 |
| 12 | 32 | 12 | 60 |
| 12 | 42 | 12 | 70 |
| 12 | 52 | 12 | 80 |
| 12 | 62 | 12 | 100 |
| 12 | 80 | 12 | 120 |
Choose the configuration for your job
Send the panel type and thickness, required cutting diameter and cutting length, collet/shank size, CNC machine model and cutting operation. For through-cutting, confirm the compression transition position against the board thickness and programmed depth. A trial cut on the actual board helps assess the edge finish.

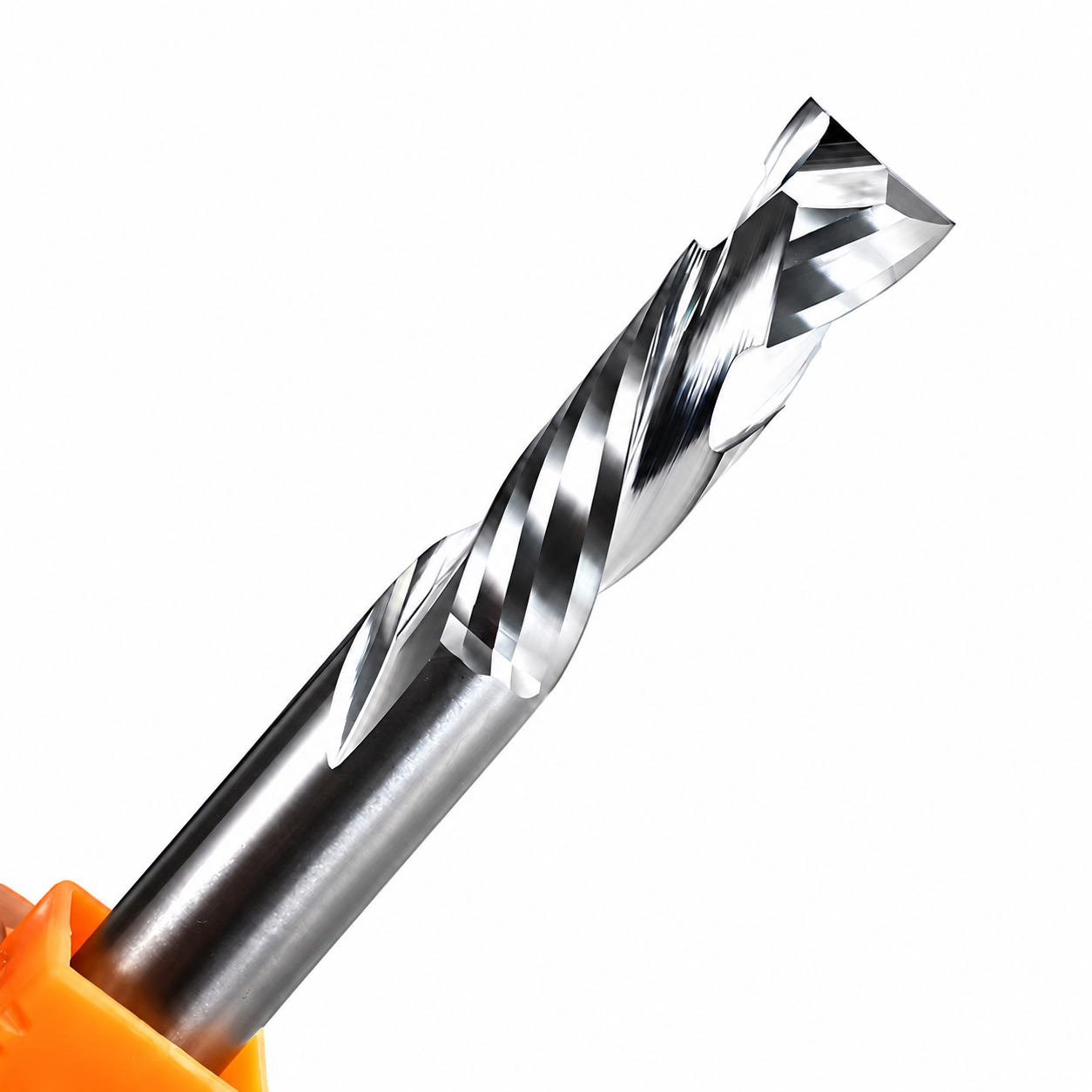

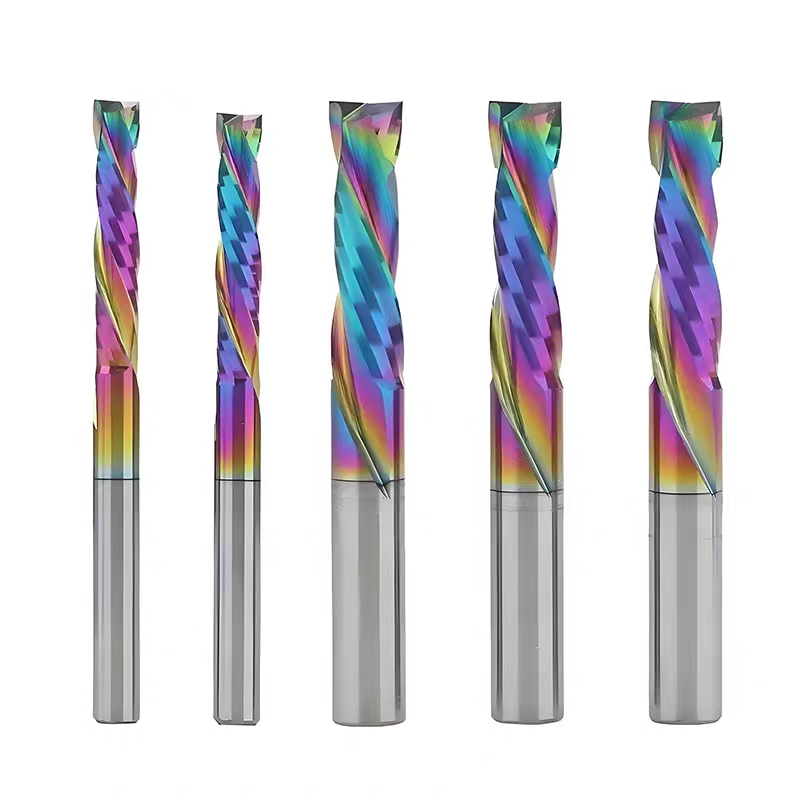

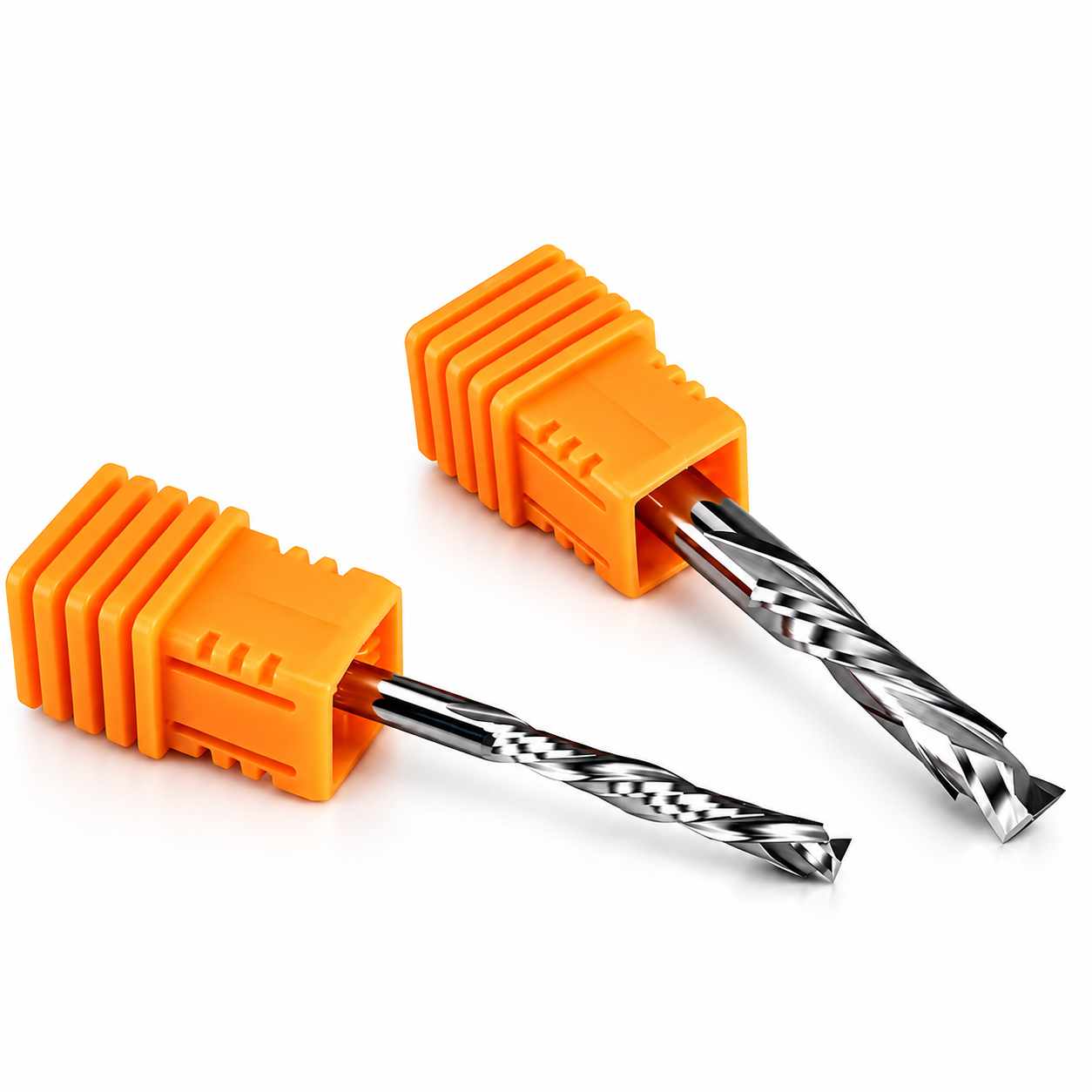

The gallery shows silver-finish cutters and a coated option. Confirm the finish, coating and exact configuration when ordering; the coating chemistry is not specified.
Request a product quotation
Share your drawing, current tool photo and machining requirements so Liho Tools can check the configuration.
Explore more carbide woodworking tools or contact Liho Tools.
