PCD Round-Bottom Profile Cutting

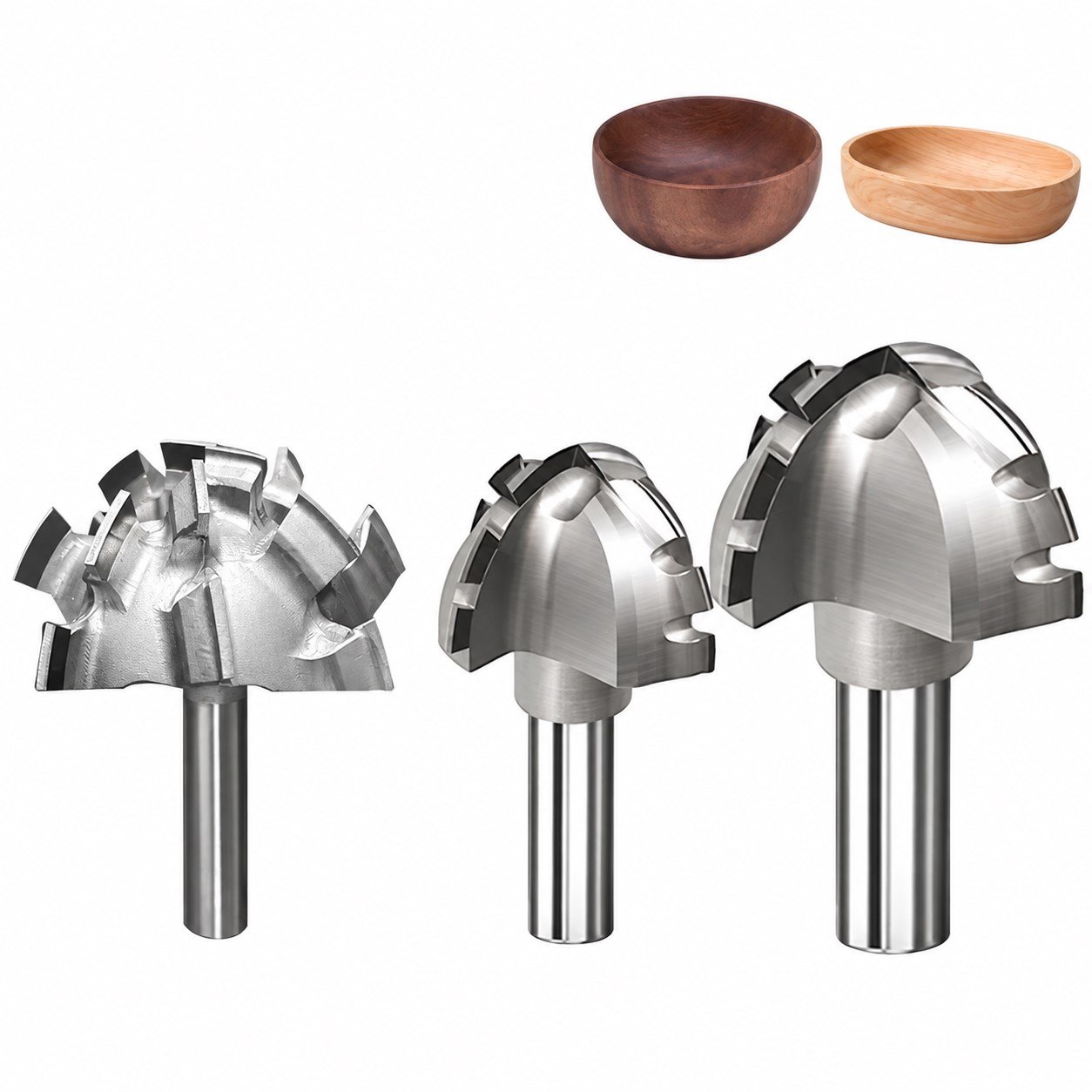

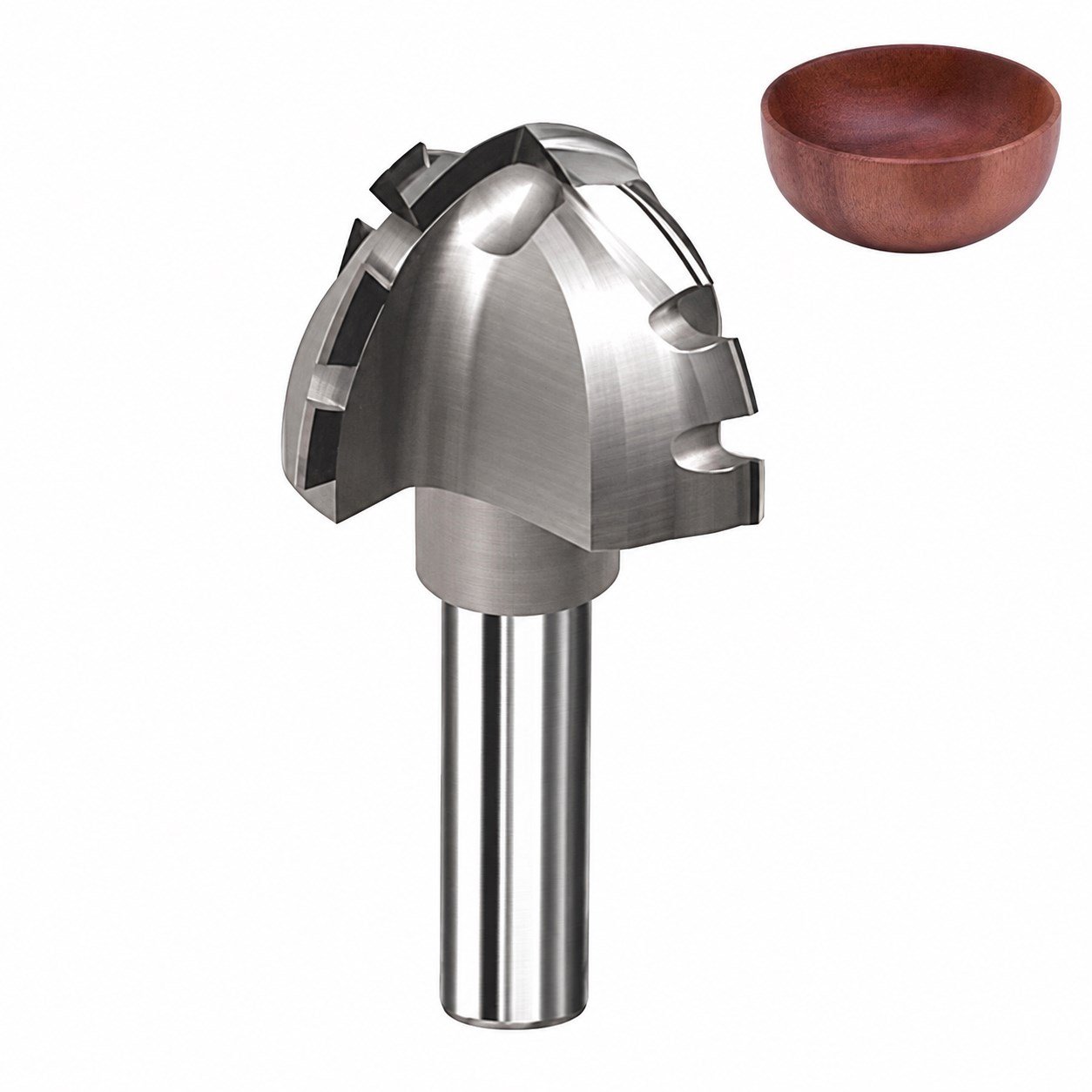

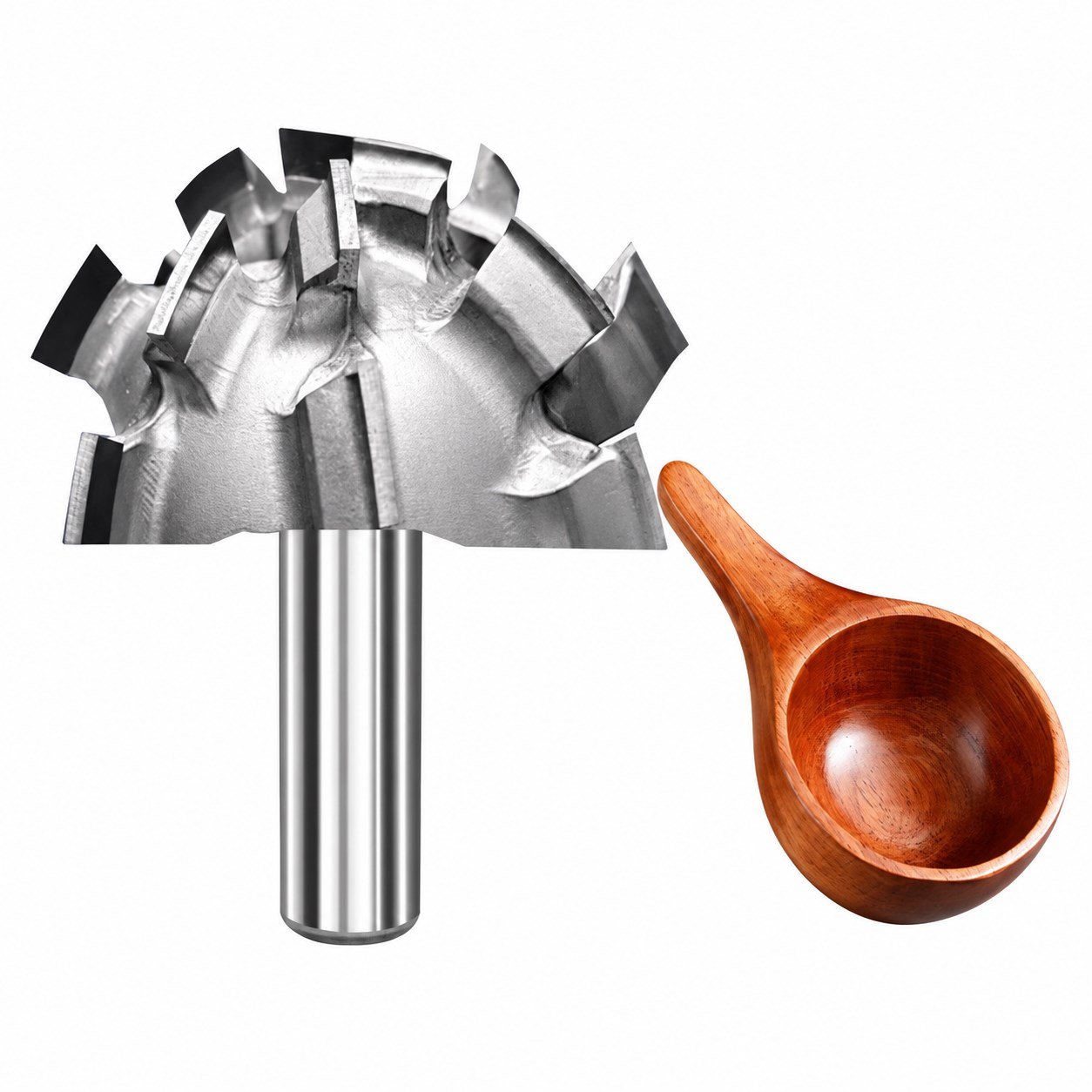

The round-bottom cutter range is illustrated with wooden bowls and a spoon-shaped sample. The gallery retains these examples alongside the corresponding cutter-head views.
Illustrated Specifications
| Shank diameter (mm) | Head diameter (mm) | Head height (mm) | Tooth configuration as supplied |
|---|---|---|---|
| 20 | 65 | 33 | 2+2T |
| 20 | 55 | 28 | 3+3T |
The 65 mm version is identified as the spiral round-bottom type. The 55 mm version is illustrated as an additional head configuration. Confirm which head shape, size and tooth configuration is required.
Application Details
Share the wood species, cavity drawing or finished sample, required radius/profile and CNC spindle details for tool selection. The wooden samples shown illustrate the intended type of shape rather than a dimensional drawing.
Request a Quote
Send your material, machine model, required dimensions, rotation and quantity to info@lihotools.com. A profile drawing or current-tool photograph helps us confirm the configuration.
Confirm the specification for your application
Specify whether you require the 65 mm spiral version or the separate 55 mm configuration. Send the recess profile, material, usable cutting depth and spindle setup; the spiral geometry is confirmed only for the 65 mm version.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
