PCD Straight Cutting for Woodworking

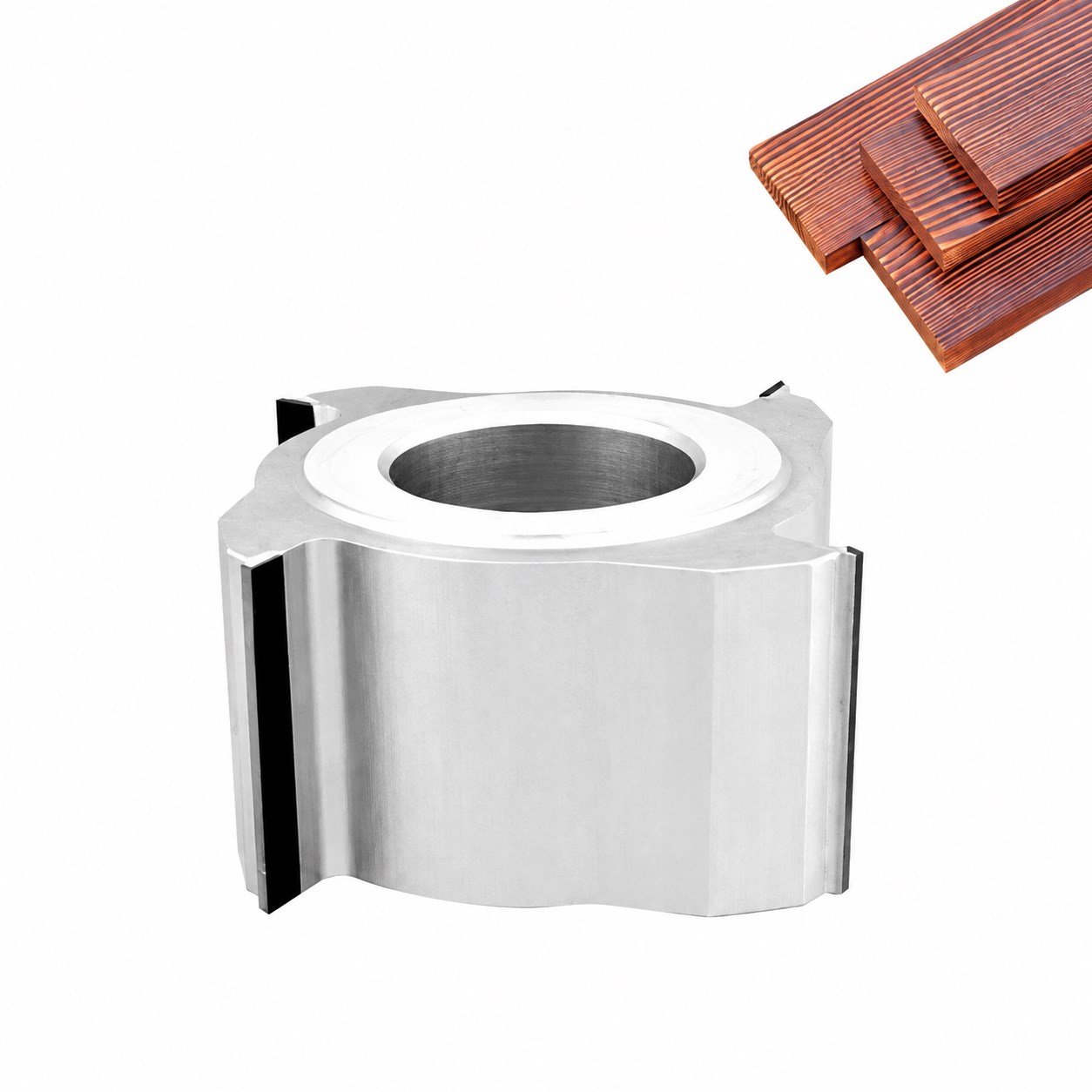

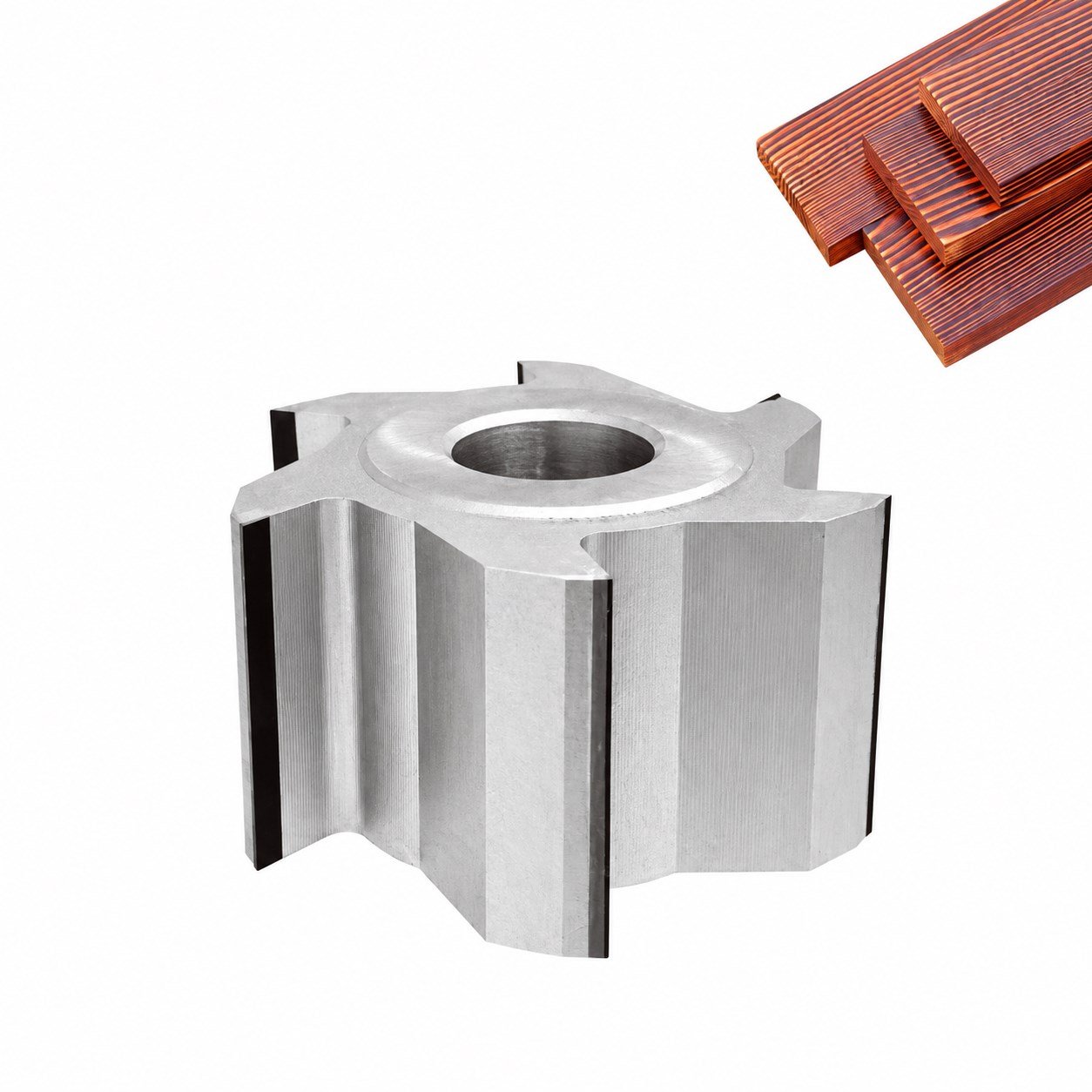

This straight cutter head uses PCD cutting edges. The gallery shows different cutter sizes and a machined wooden sample.
Listed Specifications
| Outside diameter (mm) | Bore (mm) | Cutting height options (mm) | Teeth |
|---|---|---|---|
| 90 | 35 | 20, 30, 40, 50, 60, 70, 80 | 4 |
| 100 | 35 | 30, 40, 50, 60, 70, 80 | 6 |
| 120 | 35 | 30, 40, 50, 60, 70, 80 | 6 |

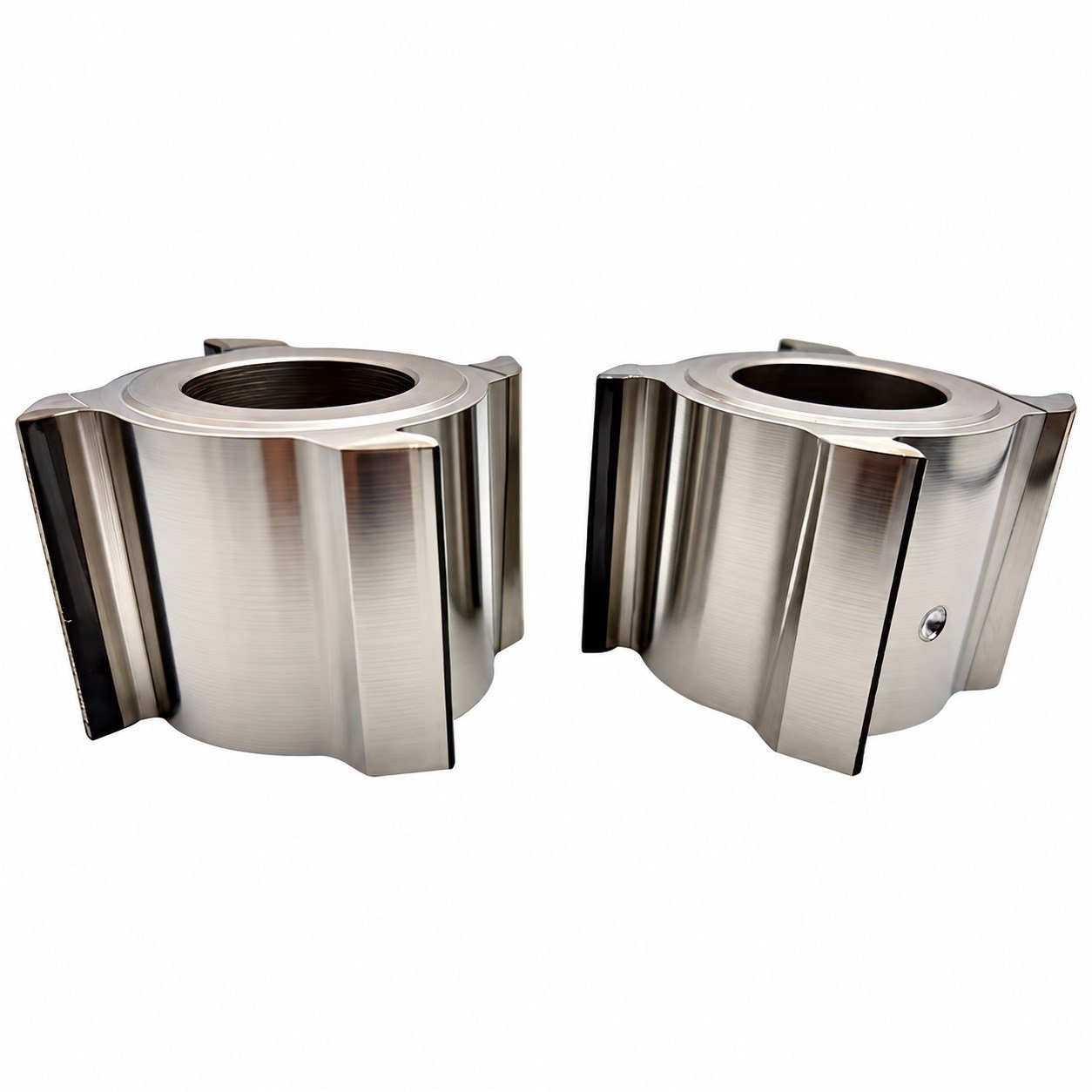

The additional gallery photograph shows a 60 × 35 × H50 mm, 4-tooth version. Confirm the exact size required with your enquiry.
Workpieces and Machines
Listed materials include MDF/density board, silicate board and hard solid-wood materials. Machine types include CNC spindle milling machines, four-side moulders, wood moulding machines and tenoning machines. Selection depends on the machine and workpiece.
Request a Quote
Send your material, machine model, required dimensions, rotation and quantity to info@lihotools.com. A profile drawing or current-tool photograph helps us confirm the configuration.
Confirm the specification for your application
Send the workpiece material, machining allowance, cutter diameter, cutting height, bore and rotation. The additional photographed 60 mm configuration is separate from the main table ranges.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
Explore Other PCD Cutter or send your application details to Liho Tools.
