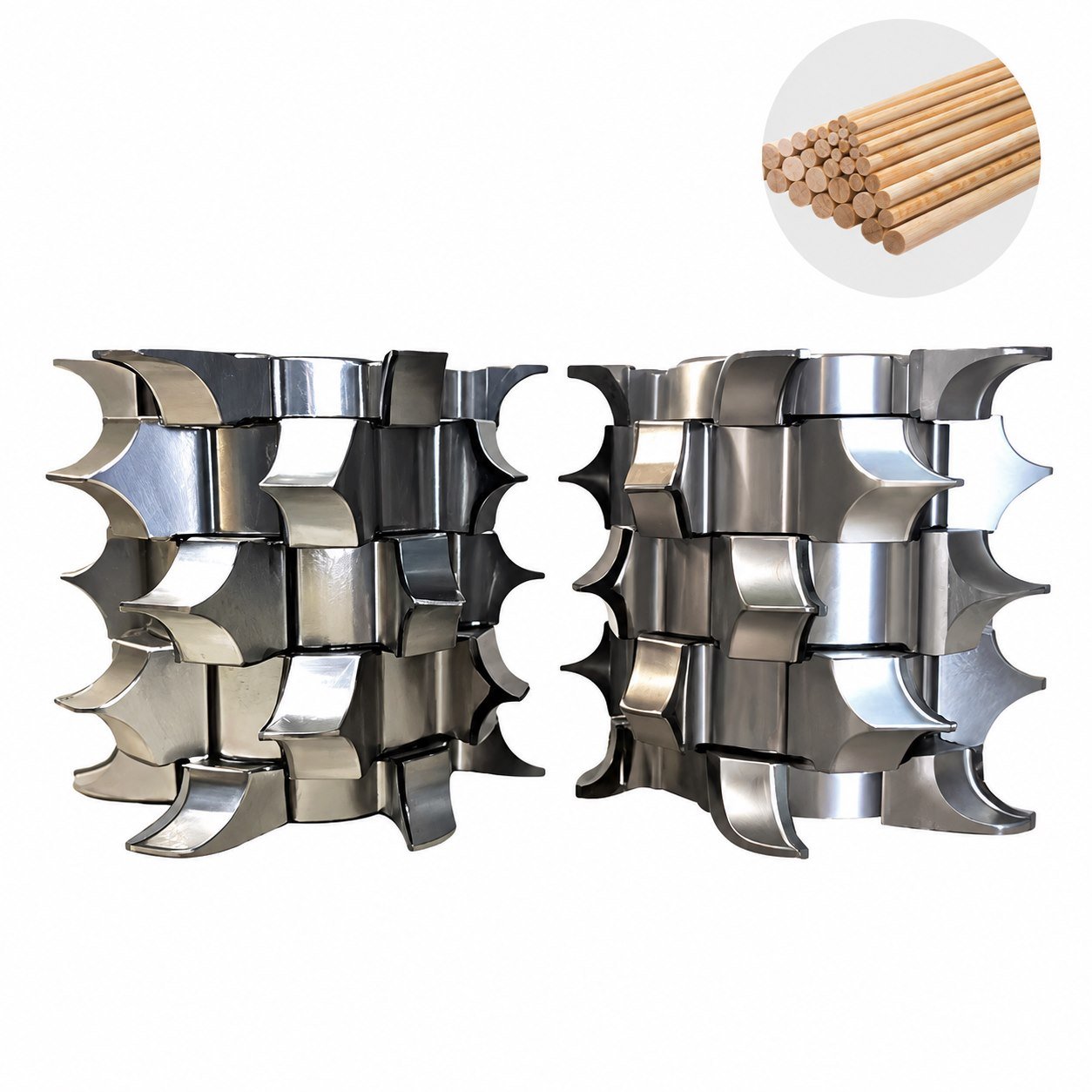

PCD Round Rod Cutter
PCD round-rod cutter for producing rounded profiles on MDF, density board, calcium silicate board and hardwood. The source specifications list use with compatible CNC routers, four-sided moulders or planers, moulding machines and tenoning machines. Confirm workpiece material, machine setup and rotation direction before ordering.
Available Specifications
| Outside Diameter D (mm) | Cutting Height H (mm) | Bore (mm) | Teeth |
|---|---|---|---|
| 100 | 12 | 30 | 4 |
| 100 | 20 | 30 | 4 |
| 100 | 25 | 30 | 4 |
| 100 | 30 | 30 | 4 |
| 100 | 20 | 30 | 6 |
| 100 | 25 | 30 | 6 |
| 120 | 30 | 30 | 6 |
| 100 | 25 | 30 | 8 |
Features
PCD cutting edges are specified for wear resistance and long service life when machining abrasive board and wood materials. Contact us with your material and machine model to confirm a suitable configuration.
Confirm the specification for your application
Send the finished rod diameter and profile drawing, material grade, blank size and machine details. Match outside diameter, cutting height and tooth count as one configuration.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
Explore Other PCD Cutter or send your application details to Liho Tools.
