PCD Straight Edge Trimming

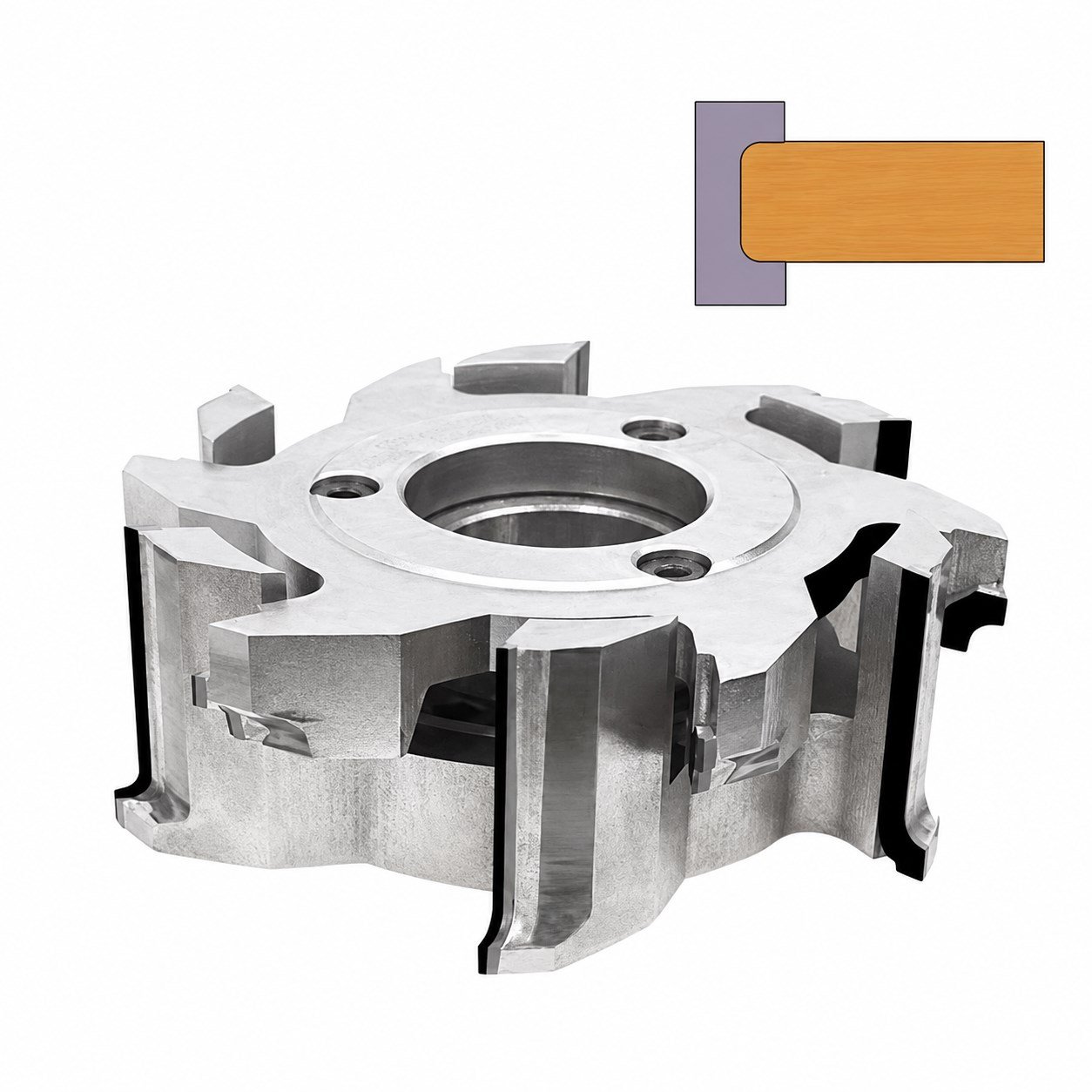

This cutter uses PCD cutting edges for straight edge processing. The product gallery includes an illustrated cutter with a workpiece-profile diagram and a separate cutter detail.
Illustrated Configuration
| Outside diameter (mm) | Bore (mm) | Workpiece thickness (mm) | Teeth |
|---|---|---|---|
| 100 | 35 | 40 | 6 |
Additional Listed 120 mm Options
| Outside diameter (mm) | Bore (mm) | Cutting thickness (mm) | Cutting width (mm) |
|---|---|---|---|
| 120 | 35 | 15 | 10 |
| 120 | 35 | 20 | 10 |
| 120 | 35 | 30 | 15 |
| 120 | 35 | 40 | 20 |
| 120 | 35 | 50 | 20 |
| 120 | 35 | 60 | 25 |
The configuration table and photographs show different versions. Provide the required workpiece section and machine setup to confirm the appropriate version.
Applications
Listed materials include MDF/density board, silicate board and hard solid-wood materials. Listed machines include CNC spindle milling machines, four-side moulders, wood moulding machines and tenoning machines.
Request a Quote
Send your material, machine model, required dimensions, rotation and quantity to info@lihotools.com. A profile drawing or current-tool photograph helps us confirm the configuration.
Confirm the specification for your application
Choose between the pictured D100, 35 mm-bore, 40 mm-working-thickness, 6-tooth version and the separate D120 range. Confirm the required cutting width and thickness together.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
