PCD Quarter-Round Profile Cutter

PCD quarter-round profile cutter for rounding panel and timber edges on compatible CNC spindle moulders, four-sided moulders, moulding machines and tenoning machines. Suitable material and cutting conditions should be checked for the selected tool and workpiece.

4-Tooth Specifications

Diameter D (mm)	Cutting Height H (mm)	Bore (mm)	Teeth
100	5	35	4
110	10	35	4
125	15	35	4
130	20	35	4
140	25	35	4
150	30	35	4
160	35	35	4

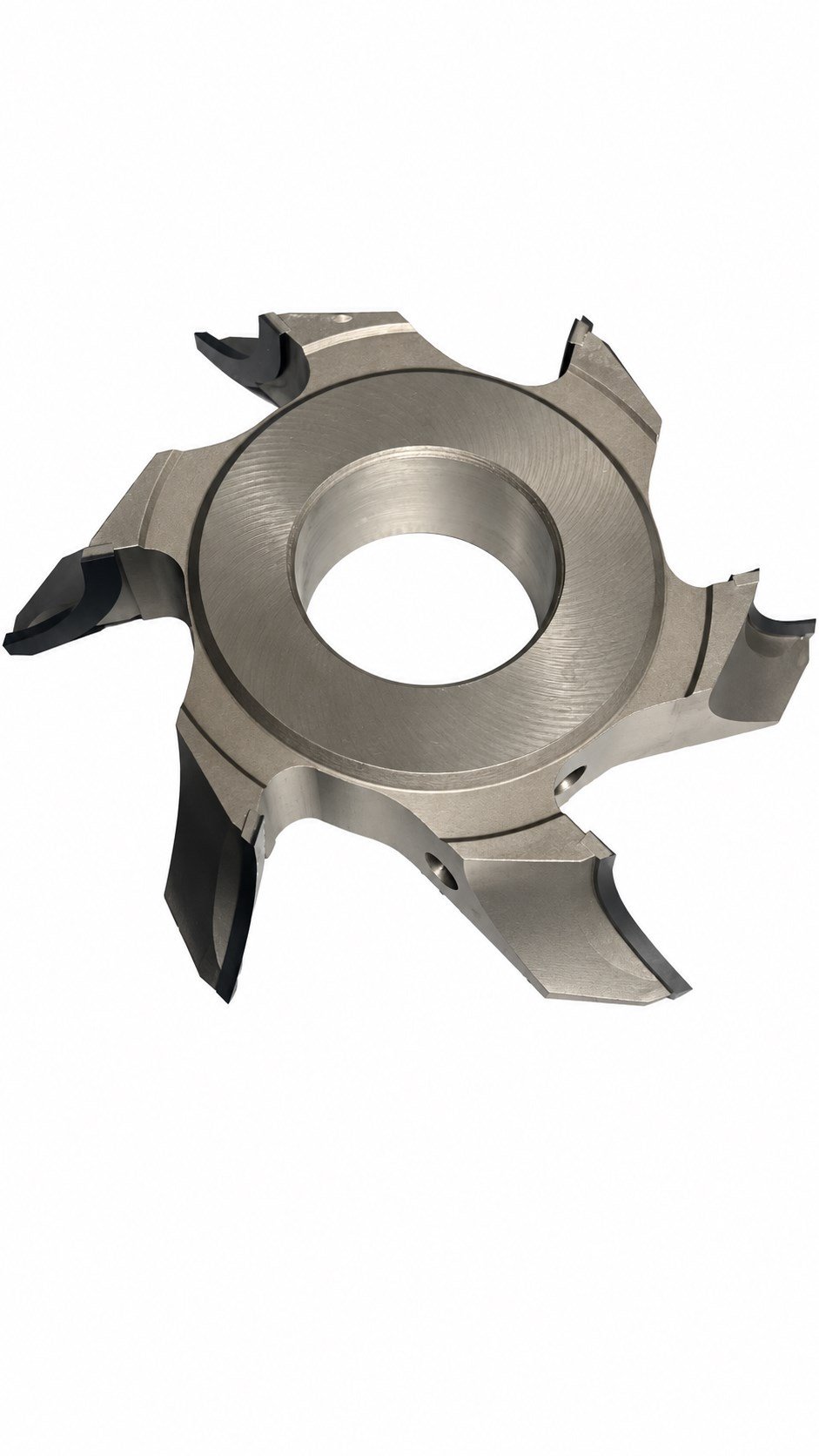

6-Tooth Specifications

Cutting Height H (mm)	Bore (mm)	Teeth
5	35	6
10	35	6
15	35	6
20	35	6
25	35	6
30	35	6
35	35	6
40	35	6

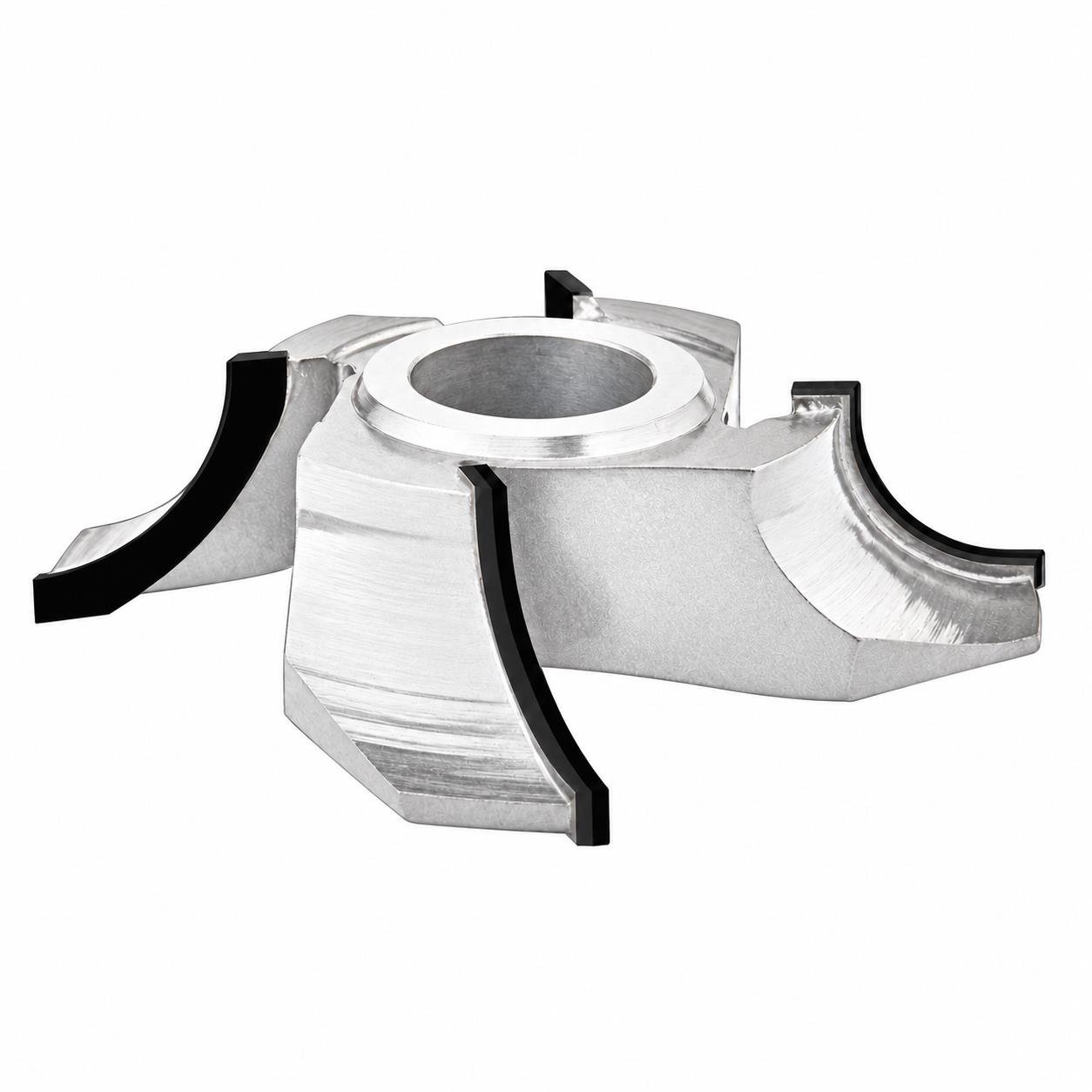

The outside diameter for the 6-tooth series and the required profile radius must be confirmed when ordering. The main image illustrates the 4-tooth design.

Applications

Edge profiling of MDF and solid wood on a compatible machine. Provide the exact material grade, required radius, machine model and rotation direction for selection.

Features

PCD cutting edges offer wear resistance for production profiling. Tool dimensions and machine compatibility must be confirmed before use.

Confirm the specification for your application

State whether you need the pictured 4-tooth version or the separate 6-tooth range. Confirm radius, diameter, height and rotation for that version; do not transfer the 4-tooth diameters to the 6-tooth range.
