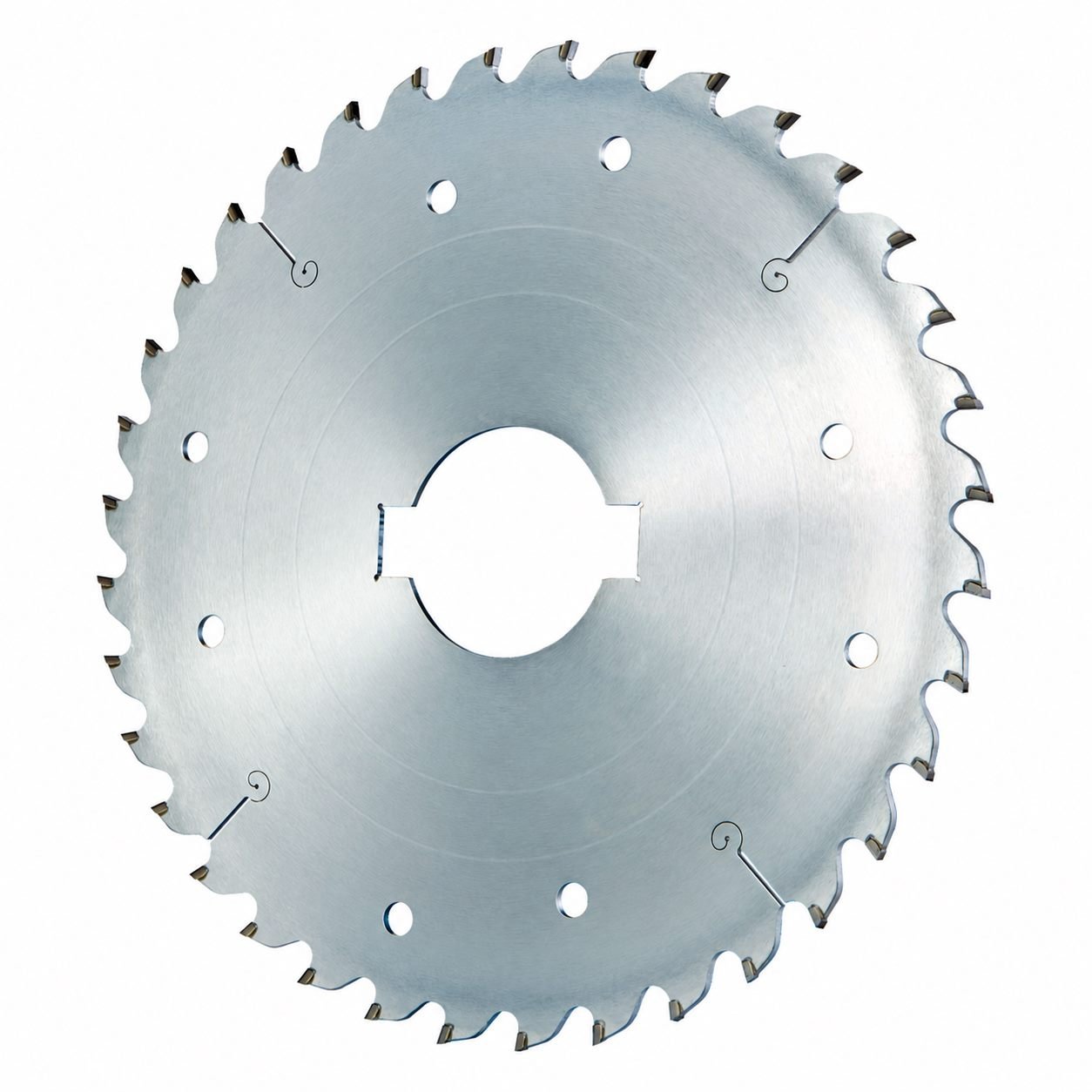

PCD blade for multi-rip sawing
This saw blade is listed for multi-rip cutting in woodworking and panel furniture production. The supplied material list includes particleboard, MDF, composite wood panels, solid wood and hardwood. Choose a configuration for the actual saw, material and cutting setup rather than by diameter alone.
Available specifications
The combinations below are listed for this range. Dimensions are in millimetres. Please confirm the exact configuration and availability before ordering.
| Diameter D, mm | Kerf B, mm | Bore d, mm | Teeth Z |
|---|---|---|---|
| 200 | 1.8 / 2.2 | 25.4 / 30 / 60 | 24 / 36 |
| 200 | 2.1 / 2.6 | 30 / 35 / 50 | 24 / 36 |
| 200 | 1.6 / 2.0 / 2.4 | 25.4 / 30 / 40 | 24 / 36 |
| 230 | 1.5 / 2.0 / 2.2 | 60 | 40 |
| 230 | 1.8 / 2.5 | 60 | 48 |
| 230 | 2.0 / 2.6 / 3.0 | 60 | 48 |
| 250 | 2.4 / 3.0 | 60 | 48 |
| 250 | 2.5 / 3.0 / 3.2 | 60 | 60 |
| 250 | 2.6 / 3.0 | 80 | 48 |
| 250 | 2.6 / 3.0 / 3.2 | 80 | 60 |
| 300 | 2.8 / 3.0 / 3.2 | 30 / 60 / 80 | 60 |
| 300 | 3.0 | 30 / 40 / 80 | 72 |
| 300 | 2.5 / 3.0 / 3.2 | 74 | 60 |
| 300 | 2.6 / 3.2 | 80 | 60 |
| 300 | 2.8 / 3.0 / 3.2 | 80 | 72 |
Request a matching blade
Send your multi-rip saw make and model, workpiece material, required diameter, bore, kerf, tooth count and a current blade photo or drawing if available. Contact Liho Tools for a quotation.
Confirm the specification for your application
Send material and thickness, rip width, arbor bore and spacing, saw model, blade diameter, kerf and teeth. Confirm the complete multi-blade arrangement rather than selecting by diameter alone.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
Explore PCD Saw Blades or send your application details to Liho Tools.
