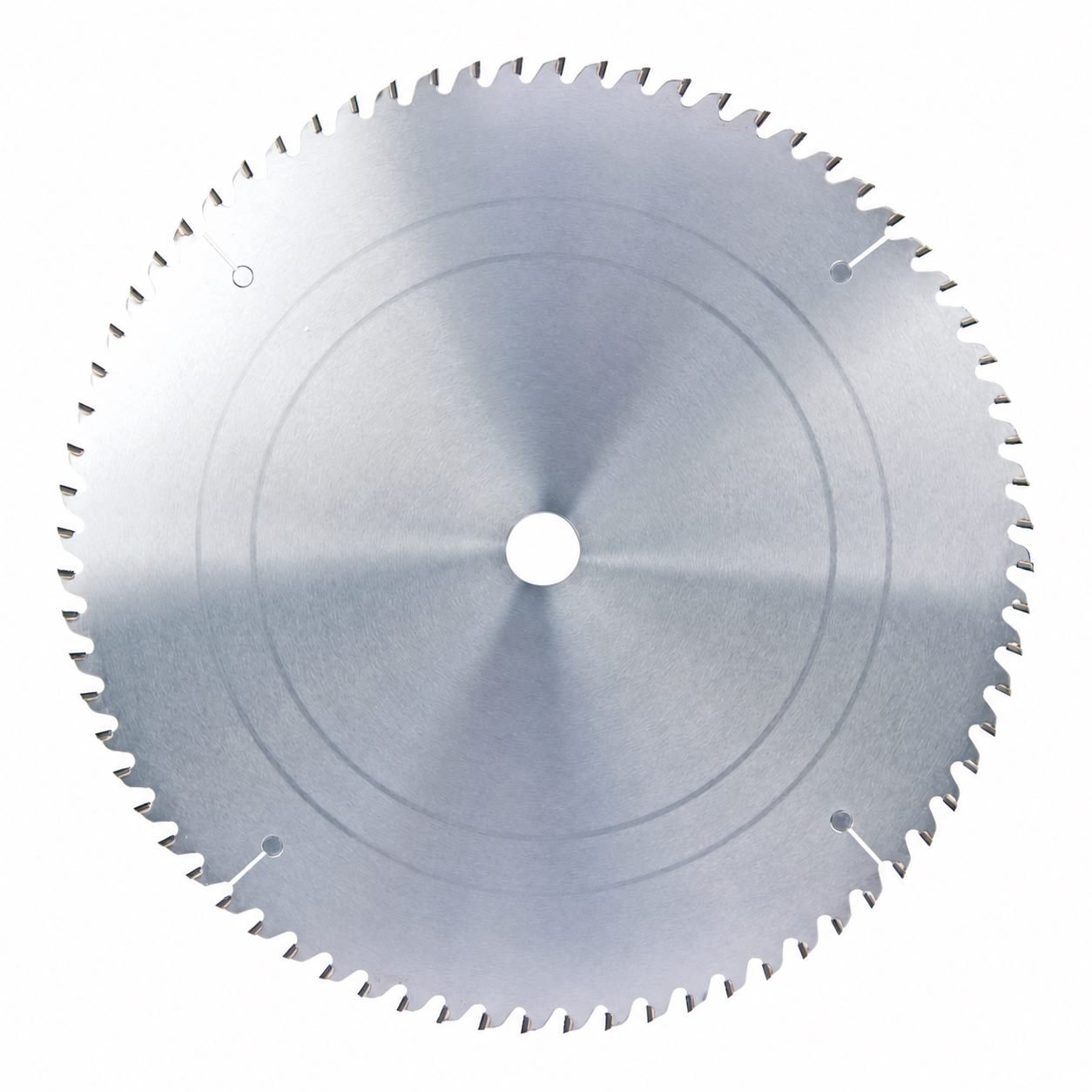

PCD saw blade for selected composite boards
This blade family is identified in the supplied product folder for compact laminate, calcium-carbonate board and phenolic laminated board applications. The accompanying general material list also mentions MDF, particleboard and other wood-based panels. Material grades and cutting conditions vary, so please confirm the specific board and saw before selecting a blade.
Available specifications
The options below are transcribed from the supplied chart. Dimensions are in millimetres; slash-separated figures are listed options, not proof that every combination is available.
| Diameter D, mm | Cutting width B, mm | Bore d, mm | Teeth Z |
|---|---|---|---|
| 250 | 3.0 / 3.2 | 25.4 / 30 | 48 / 60 |
| 300 | 3.2 / 3.5 | 30 | 60 / 72 |
| 300 | 4.0 | 30 | 72 |
| 300 | 3.2 | 30 | 96 |
| 350 | 3.5 | 30 | 72 |
| 350 / 355 | 3.5 | 25.4 / 30 | 72 / 84 |
| 350 / 355 | 4.0 | 25.4 / 30 | 72 / 80 |
| 400 | 4.4 | 60 / 75 | 72 / 84 / 96 |
| 430 | 4.4 | 60 / 75 | 72 / 84 / 96 |
| 450 | 4.8 | 60 / 75 | 72 / 84 / 96 |
Check material and saw fit
For a quotation, send the board trade name or composition, thickness, surface finish, saw make and model, required diameter, bore, cutting width and tooth count. A current blade photo or drawing is helpful. Discuss a suitable PCD saw blade with Liho Tools.
