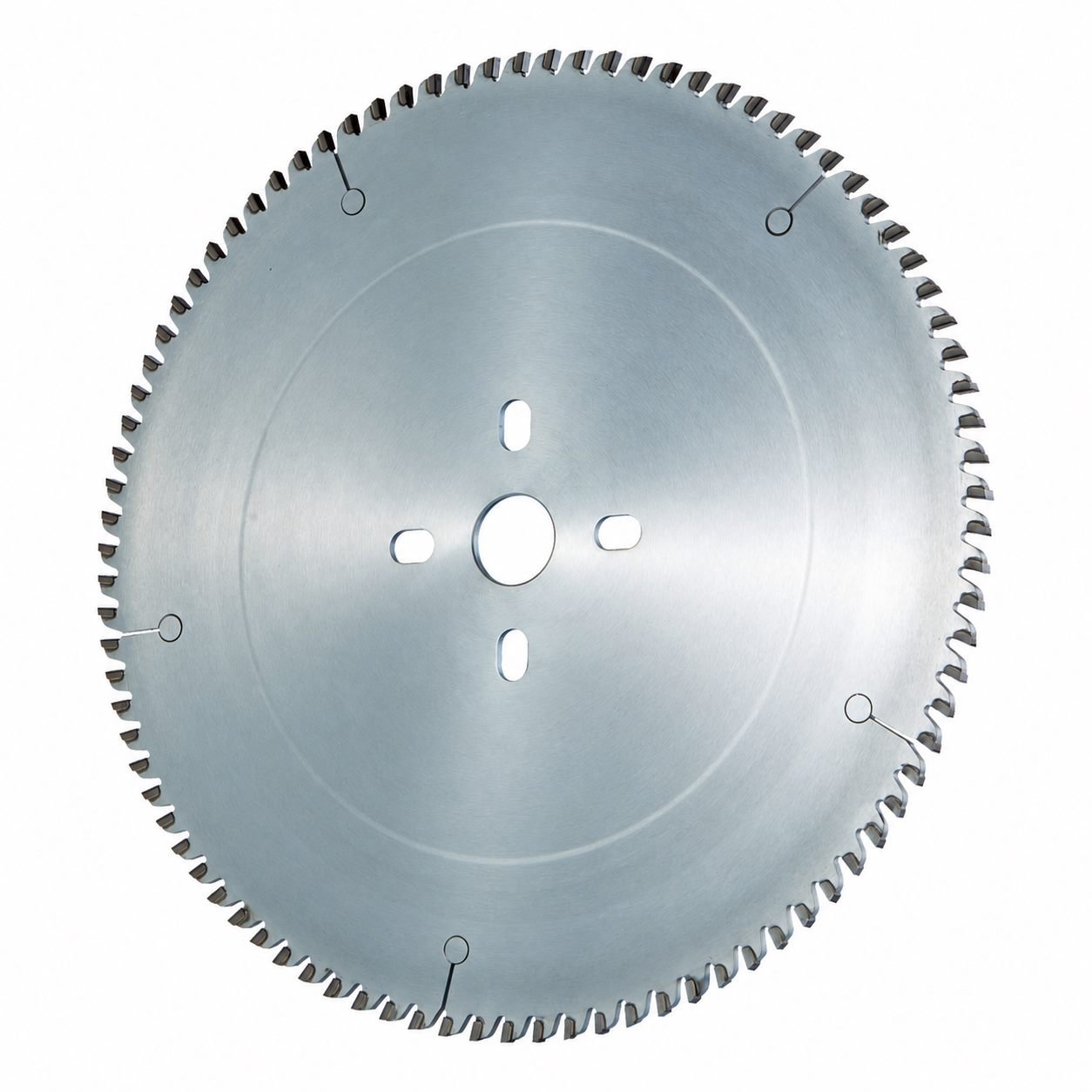

PCD saw blade for speaker-cabinet panel production
This PCD saw blade range is listed for speaker-cabinet panel processing. The supplied general material description covers MDF, particleboard and other wood-based panels. Panel construction and machine settings vary, so confirm the exact substrate, saw and cutting operation before selecting a blade.
Available specifications
The options below are listed for this range. Dimensions are in millimetres. A slash indicates listed tooth-count alternatives. The 48+24 and 36+36 entries reproduce the source-chart notation; confirm the tooth configuration before ordering.
| Diameter D, mm | Cutting width B, mm | Bore d, mm | Teeth Z |
|---|---|---|---|
| 180 | 2.0 | 25.4 | 24 |
| 180 | 2.2 | 25.4 | 24 |
| 180 | 2.6 | 40 | 24 |
| 200 | 2.0 | 35 | 24 |
| 200 | 2.5 | 40 | 30 |
| 230 | 2.2 | 25.4 | 36 / 48 |
| 230 | 3.0 | 25.4 | 60 |
| 250 | 2.5 | 30 | 60 |
| 250 | 3.0 | 25.4 | 48 |
| 250 | 3.2 | 30 | 60 |
| 255 | 3.2 | 25.4 | 60 |
| 280 | 3.0 | 25.4 | 72 |
| 280 | 3.0 | 25.4 | 80 |
| 280 | 3.0 | 25.4 | 90 |
| 280 | 3.0 | 25.4 | 48+24 |
| 280 | 3.0 | 25.4 | 36+36 |
| 305 | 3.0 | 25.4 | 60 |
| 305 | 3.0 | 25.4 | 80 |
| 350 | 3.0 | 25.4 | 100 |
| 355 | 3.0 | 25.4 | 60 |
| 355 | 3.0 | 25.4 | 72 |
| 355 | 3.0 | 25.4 | 80 |
Specify your saw setup
Send your panel material and thickness, saw make and model, required diameter, bore, cutting width and tooth count. A drawing or photo of your current blade can help verify fit. Ask Liho Tools about this PCD saw blade.
Confirm the specification for your application
Send panel construction and thickness, saw model, blade diameter, bore, kerf and teeth. For 48+24 or 36+36 notation, request confirmation of the exact tooth configuration.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
