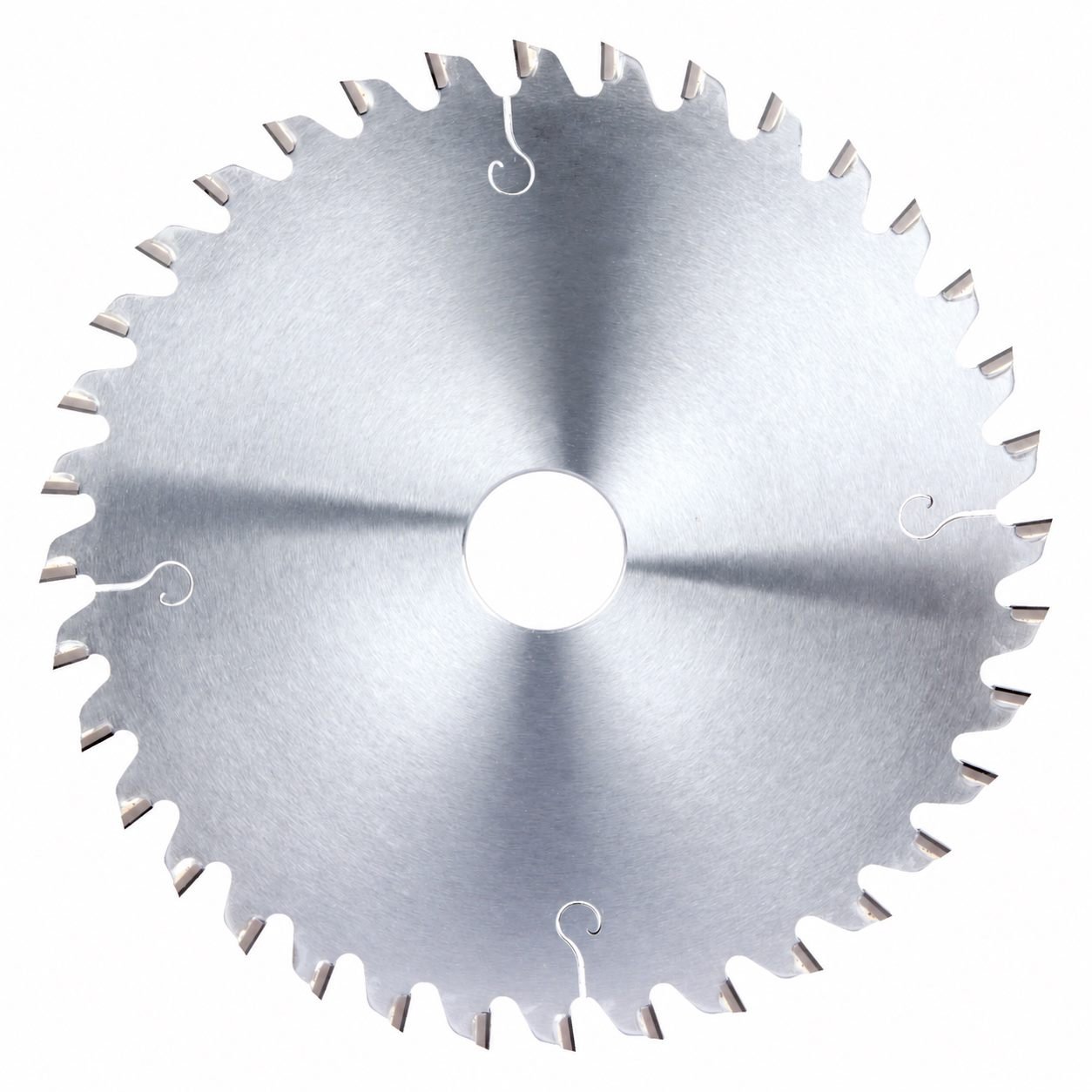

PCD grooving blade for edge banding
This PCD saw blade is supplied for grooving operations on edge-banding equipment. The supplied material list includes MDF, particleboard, composite panels, solid wood and hardwood. Check the groove requirement and machine mounting before selecting a blade.
Available specifications
The following options are listed for this range. Dimensions are in millimetres; slash-separated values are listed options and do not confirm every possible combination. Confirm the exact configuration before ordering.
| Diameter D, mm | Cutting width B, mm | Bore d, mm | Teeth Z |
|---|---|---|---|
| 80 | 1.5 / 1.8 | 25.4 / 30 / 35 | 12 |
| 80 | 2.0 / 2.4 | 25.4 / 30 / 35 | 12 |
| 100 | 1.6 / 1.8 | 25.4 / 30 / 35 | 12 |
| 100 | 2.0 / 2.5 | 25.4 / 30 / 35 | 12 |
| 125 | 1.6 / 1.8 | 25.4 / 30 / 35 | 18 |
| 125 | 2.0 / 2.6 | 25.4 / 30 / 35 | 18 |
| 125 | 3.0 / 3.2 | 25.4 / 30 / 35 | 18 |
| 125 | 3.5 | 25.4 / 30 / 35 | 18 |
| 125 / 135 | 4.0 | 25.4 / 30 / 35 | 18 / 24 |
| 125 / 140 | 4.5 | 25.4 / 30 / 35 | 18 / 24 |
| 125 / 150 | 5.0 | 25.4 / 30 / 35 | 18 / 24 |
| 125 / 160 | 5.5 | 25.4 / 30 / 35 | 18 / 24 |
| 125 / 160 | 6.0 | 25.4 / 30 / 35 | 18 / 24 |
What to send for a quotation
Please provide the edge bander make and model, groove position and width, workpiece material, blade diameter, bore and current blade reference. Send your grooving blade inquiry.
Confirm the specification for your application
Send groove width and depth, panel material and thickness, blade bore, rotation and machine model. Slash-separated table values are options; request confirmation of the complete combination.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
Explore PCD Saw Blades or send your application details to Liho Tools.
