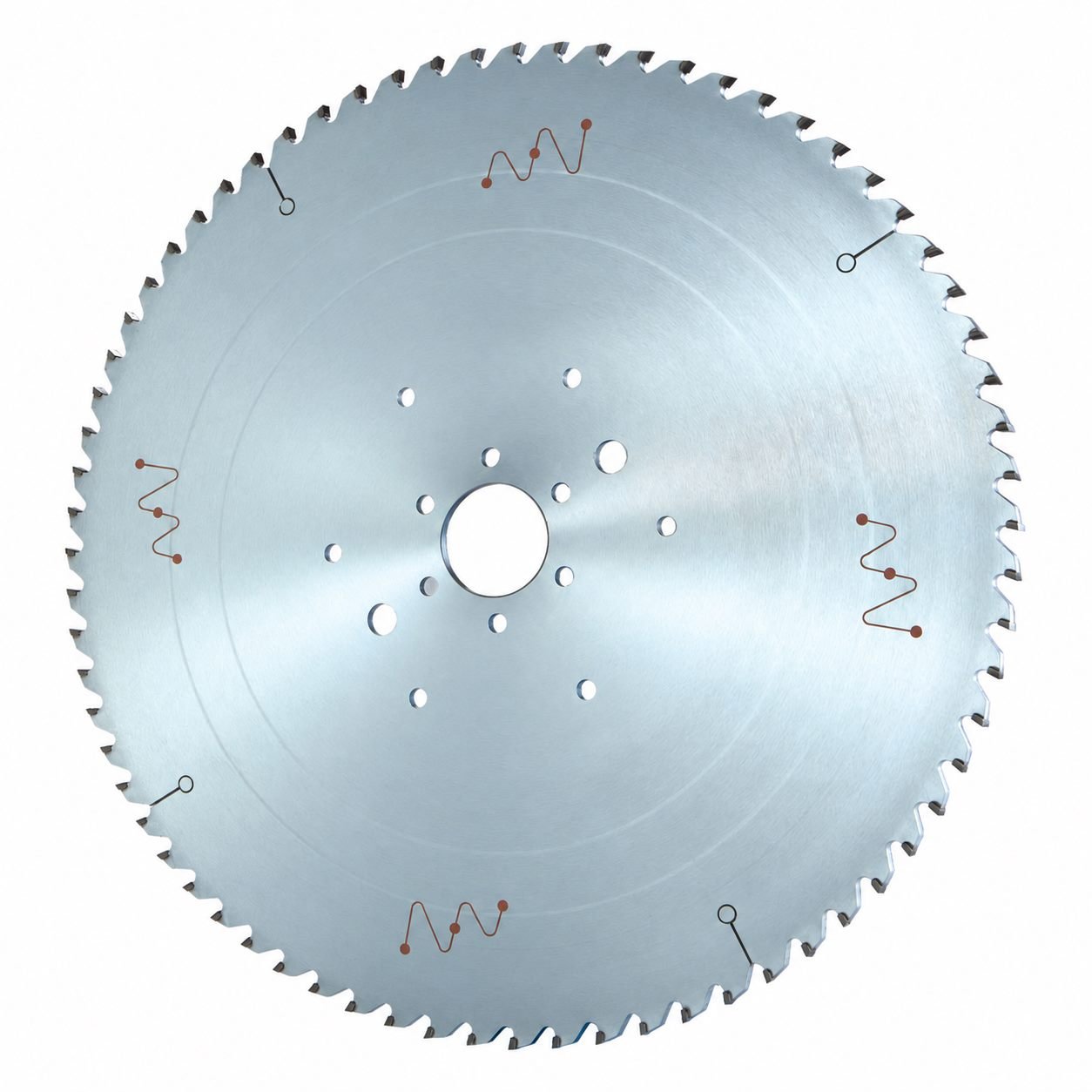

PCD saw blade for trimming-machine applications
This blade is listed for trimming operations in woodworking and panel furniture production. The supplied material list includes MDF, particleboard, composite panels, solid wood and hardwood. Confirm the machine and workpiece before choosing a blade configuration.
Available specifications
The configurations below are transcribed from the supplied chart. Dimensions are in millimetres. Confirm the mounting pattern and exact availability before ordering.
| Diameter D, mm | Cutting width B, mm | Bore d, mm | Teeth Z |
|---|---|---|---|
| 300 | 3.2 | 30 / 25.4 | 48 |
| 355 | 3.5 | 50.8 | 70 |
| 355 | 4.0 | 50.8 | 70 |
| 355 | 5.0 | 50.8 | 70 |
| 405 | 4.0 | 50.8 | 70 |
| 405 | 5.0 | 50.8 | 70 |
| 455 | 5.0 | 50.8 | 70 |
Request a suitable configuration
Send the trimming machine make and model, material, blade diameter, bore, cutting width, tooth count and a photo or drawing of your existing blade. Contact Liho Tools for a quotation.
