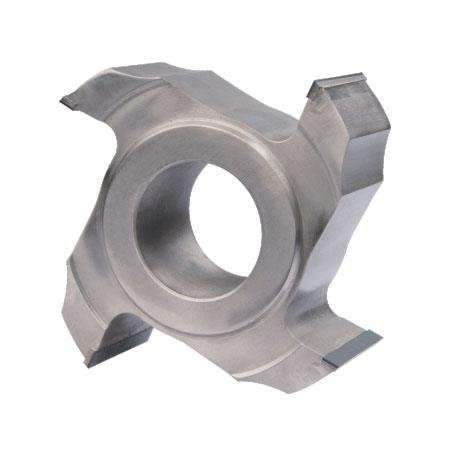

PCD Rough Trimming Cutter for Edge Banding Machines
This PCD rough trimming cutter is designed for rough trimming and chamfering of solid wood, panel and plastic edge-banding strips on compatible edge banding machines.
Applications
- Rough trimming after edge application
- Chamfering solid wood and plastic edge bands
- Panel furniture, cabinet and door production
Available Specifications
| Diameter D mm | Cutting Height H mm | Bore d mm | Teeth Z |
|---|---|---|---|
| 50 | 12 | 16 | 4 |
| 56 | 14 | 16 / 20 | 4 |
| 61 | 12 | 16 | 4 |
| 70 | 20 | 16 / 20 | 4 |
| 80 | 20 | 20 | 4 / 6 |
Machine interface, tool rotation and final dimensions must be confirmed before ordering. Please provide the machine model, edge-band material and required profile for selection.
