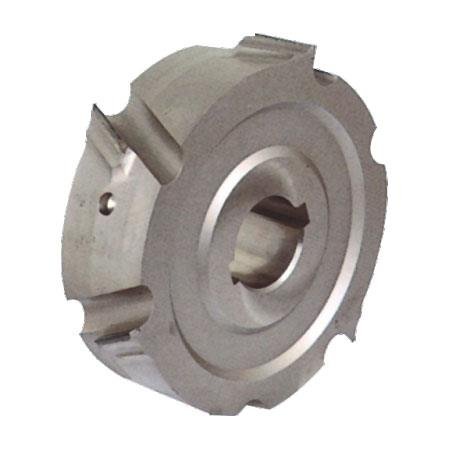

100 mm PCD Pre-Milling Cutter for Edge Banders
This PCD pre-milling cutter is designed for automatic edge banding machines processing veneered panels and composite boards. The 100 mm diameter range provides multiple cutting heights for different panel and machine requirements.
Applications
- Pre-milling before edge application
- Veneered panels and composite materials
- Panel furniture, cabinet and door production
Available Specifications
| Diameter D mm | Cutting Height H mm | Bore d mm | Teeth Z |
|---|---|---|---|
| 100 | 35 | 30 | 3+3 |
| 100 | 43 | 30 | 3+3 |
| 100 | 48 | 30 | 3+3 |
| 100 | 50 | 30 | 3+3 |
| 100 | 55 | 30 | 3+3 / 6+6 |
| 100 | 63 | 30 | 3+3 |
Confirm machine interface, rotation direction and final dimensions before ordering. Custom specifications can be reviewed against your machine model and required edge finish.
Confirm the specification for your application
Choose the required height from the table and confirm the tooth arrangement for that row. Send panel thickness, rotation direction and machine model; listed heights are separate configurations.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
Explore PCD Edge Bander Cutter or send your application details to Liho Tools.
