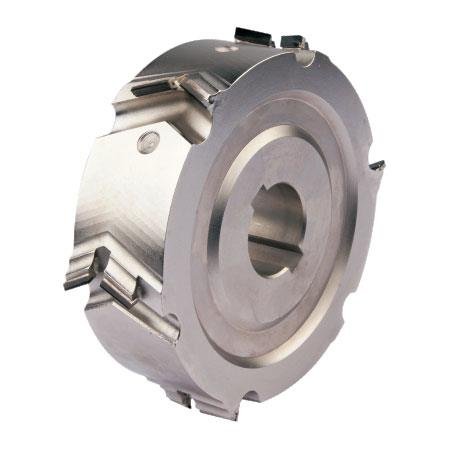

PCD Pre-Milling Cutter for Edge Banding Machines
This PCD pre-milling cutter is designed for edge banding machines processing veneered panels and composite boards. It supports efficient pre-milling before edge application and helps prepare a clean, consistent panel edge.
Applications
- Pre-milling on automatic edge banders
- Veneered panels and composite board materials
- Panel furniture, cabinet and door production
Available Specifications
| Diameter D mm | Cutting Height H mm | Bore d mm | Teeth Z |
|---|---|---|---|
| 80 | 35 | 20 / 25.4 | 3+3 |
| 80 | 35 | 20 / 30 | 3+3 |
| 80 | 35 | 20 | 3+3 |
Machine interface and final dimensions should be confirmed before ordering. Custom specifications can be reviewed against your machine model, panel material and required edge finish.
Confirm the specification for your application
Confirm which listed bore matches the shaft, the rotation direction and the machine clearance. Send the panel material and thickness together with your edge-bander model.
Request a product quotation
Include a current-tool photo or dimensioned drawing where available so Liho Tools can check the required configuration and machine fit.
Explore PCD Edge Bander Cutter or send your application details to Liho Tools.
